OPA2354AIDGKT (msop-8, TI, dual, Rail-to-Rail, быстродействующий малошумящий ОУ)

250MHz, Rail-to-Rail I/O, CMOS OPERATIONAL AMPLIFIERS. В одном корпусе 2 быстродействующих малошумящих ОУ (сдвоенный, dual) Даташит: [войдите с паролем для получения файла]



Manufacturer Texas Instruments
Product Category Op Amps
RoHS
Number of Channels Dual

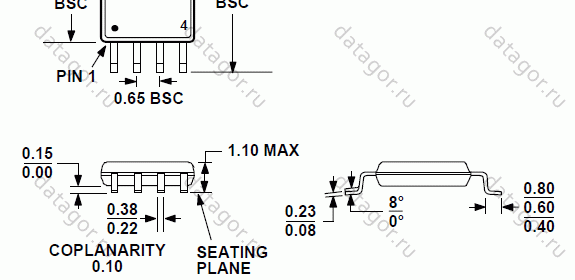

Package / Case MSOP
Gain Bandwidth Product 100 MHz
Common Mode Rejection Ratio (Min) 66 dB
Input Voltage Range (Min) Negative Rail - 0.1 V
Input Offset Voltage 8 mV @ 5 V
Input Bias Current (Max) 0.00005 uA @ 5.5 V
Output Current (Typ) 100 mA
Slew Rate 150 V/us @ 5 V
Supply Voltage (Max) 5.5 V
Supply Voltage (Min) 2.5 V
Supply Current 12 mA
Maximum Dual Supply Voltage +/- 2.75 V
Minimum Dual Supply Voltage +/- 1.25 V
Maximum Operating Temperature 125 C
Minimum Operating Temperature - 40 C
Packaging Reel
Operating Supply Voltage 3 V or 5 V
Shutdown No
Technology CMOS
Type Voltage Feedback Amplifier
